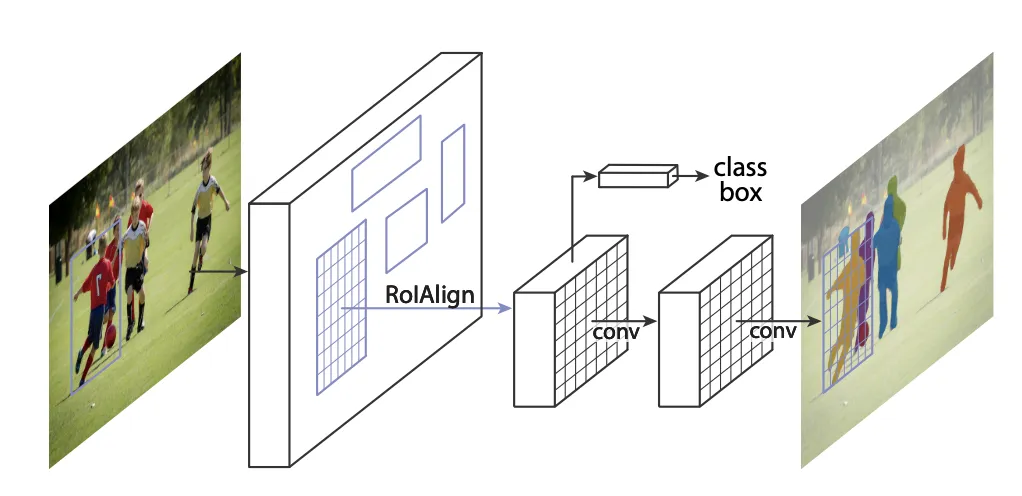

Mask R-CNN is the most used architecture for instance segmentation. It is almost built the same way as Faster R-CNN. The major difference is that there is an extra head that predicts masks inside the predicted bounding boxes.
Also, the authors replaced the RoI pool layer with the RoI align layer. RoI pool mappings are often a bit noisy. The difference is so small that it is negligible for object detection, but not when you want to create pixel-perfect masks for instance segmentation.
Typically, the following hyperparameters are tweaked when using Faster R-CNN:
Specifying the architecture for the network on which Faster R-CNN is built
Mostly, the backbone network is a ResNet variation.
These thresholds are used to decide if an anchor box generated contains an object or is part of the background.
Everything that is above the upper IoU threshold of the proposed anchor box and ground truth label will be classified as an object and forwarded. Everything below the lower threshold will be classified as background and the network will be penalized. For all the anchor boxes with an IoU between the thresholds, we're not sure if it's for- or background and we'll just ignore them.
Empirically, setting the lower bound to 0.3 and the upper to 0.7 leads to robust results.
How many convolution filters the final layer to make the classification contains. To a certain degree, increasing the number of filters will enable the network to learn more complex features, but the effect vanishes if you add too many filters and the network will perform worse (see the original ResNet paper to understand why you cannot endlessly chain convolution filters).
A good default value is 4 conv filters.
How many fully connected layers (FC) the last part of the network contains. Increasing the number of FCs can increase performance for a computational cost, but you might overfit the sub-network if you add too many.
Often, 2 FCs are used as starting point.
The maximum of proposals that are taken into consideration by NMS. The proposals are sorted descending after confidence and only the ones with the highest confidence are chosen.
The maximum of proposals that will be forwarded to the ROI box head. Again, the proposals are sorted descending after confidence and only the ones with the highest confidence are chosen.
Config for training
Config for testing
After extracting the Region of Interests from the feature map, they should be adjusted to a certain dimension before feeding them to the fully connected layer that will later do the actual object detection. For this, ROI Align is used which makes use of points that would be sampled from a defined grid, to resize the ROIs. The number of points that we use is defined by Pooler Sampling Ratio.
If Pooler Sampling ratio is set to 2, then 2 * 2 = 4 points are used for the interpolation.
It is the spatial size to pool proposals before feeding them to the mask predictor, in model playground default value is set as 14.
It is the depth variant of resnet to use as the backbone feature extractor, in Model Playground depth can be set as 18/50/101/152
It's the weights to use for model initialization, and in Model Playground R50-FPN COCO or R50-FPN LVIS weights are used.
# import necessary libraries from PIL import Image import matplotlib.pyplot as plt import torch import torchvision.transforms as T import torchvision import torch import numpy as np import cv2 import random import time import os # These are the classes that are available in the COCO-Dataset COCO_INSTANCE_CATEGORY_NAMES = [ '__background__', 'person', 'bicycle', 'car', 'motorcycle', 'airplane', 'bus', 'train', 'truck', 'boat', 'traffic light', 'fire hydrant', 'N/A', 'stop sign', 'parking meter', 'bench', 'bird', 'cat', 'dog', 'horse', 'sheep', 'cow', 'elephant', 'bear', 'zebra', 'giraffe', 'N/A', 'backpack', 'umbrella', 'N/A', 'N/A', 'handbag', 'tie', 'suitcase', 'frisbee', 'skis', 'snowboard', 'sports ball', 'kite', 'baseball bat', 'baseball glove', 'skateboard', 'surfboard', 'tennis racket', 'bottle', 'N/A', 'wine glass', 'cup', 'fork', 'knife', 'spoon', 'bowl', 'banana', 'apple', 'sandwich', 'orange', 'broccoli', 'carrot', 'hot dog', 'pizza', 'donut', 'cake', 'chair', 'couch', 'potted plant', 'bed', 'N/A', 'dining table', 'N/A', 'N/A', 'toilet', 'N/A', 'tv', 'laptop', 'mouse', 'remote', 'keyboard', 'cell phone', 'microwave', 'oven', 'toaster', 'sink', 'refrigerator', 'N/A', 'book', 'clock', 'vase', 'scissors', 'teddy bear', 'hair drier', 'toothbrush' ] # get the pretrained model from torchvision.models # Note: pretrained=True will get the pretrained weights for the model. # model.eval() to use the model for inference model = torchvision.models.detection.maskrcnn_resnet50_fpn(pretrained=True) model.eval() # random_colour_masks() function to fill the predicted-mask with colors # get_predictions() to return the final predictions from the model # instance_segmentation_api() to overlay the colored mask over the original image and plot it def random_colour_masks(image): """ random_colour_masks parameters: - image - predicted masks method: - the masks of each predicted object is given random colour for visualization """ colours = [[0, 255, 0],[0, 0, 255],[255, 0, 0],[0, 255, 255],[255, 255, 0],[255, 0, 255],[80, 70, 180],[250, 80, 190],[245, 145, 50],[70, 150, 250],[50, 190, 190]] r = np.zeros_like(image).astype(np.uint8) g = np.zeros_like(image).astype(np.uint8) b = np.zeros_like(image).astype(np.uint8) r[image == 1], g[image == 1], b[image == 1] = colours[random.randrange(0,10)] coloured_mask = np.stack([r, g, b], axis=2) return coloured_mask def get_prediction(img_path, threshold): """ get_prediction parameters: - img_path - path of the input image method: - Image is obtained from the image path - the image is converted to image tensor using PyTorch's Transforms - image is passed through the model to get the predictions - masks, classes and bounding boxes are obtained from the model and soft masks are made binary(0 or 1) on masks ie: eg. segment of cat is made 1 and rest of the image is made 0 """ img = Image.open(img_path) transform = T.Compose([T.ToTensor()]) img = transform(img) pred = model([img]) pred_score = list(pred['scores'].detach().numpy()) pred_t = [pred_score.index(x) for x in pred_score if x>threshold][-1] masks = (pred['masks']>0.5).squeeze().detach().cpu().numpy() pred_class = [COCO_INSTANCE_CATEGORY_NAMES[i] for i in list(pred['labels'].numpy())] pred_boxes = [[(i, i), (i, i)] for i in list(pred['boxes'].detach().numpy())] masks = masks[:pred_t+1] pred_boxes = pred_boxes[:pred_t+1] pred_class = pred_class[:pred_t+1] return masks, pred_boxes, pred_class def instance_segmentation_api(img_path, threshold=0.5, rect_th=3, text_size=3, text_th=3): """ instance_segmentation_api parameters: - img_path - path to input image method: - prediction is obtained by get_prediction - each mask is given random color - each mask is added to the image in the ration 1:0.8 with opencv - final output is displayed """ masks, boxes, pred_cls = get_prediction(img_path, threshold) img = cv2.imread(img_path) img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB) for i in range(len(masks)): rgb_mask = random_colour_masks(masks[i]) img = cv2.addWeighted(img, 1, rgb_mask, 0.5, 0) cv2.rectangle(img, boxes[i], boxes[i],color=(0, 255, 0), thickness=rect_th) cv2.putText(img,pred_cls[i], boxes[i], cv2.FONT_HERSHEY_SIMPLEX, text_size, (0,255,0),thickness=text_th) plt.figure(figsize=(20,30)) plt.imshow(img) plt.xticks() plt.yticks() plt.show() # We will use the following colors to fill the pixels colours = [[0, 255, 0], [0, 0, 255], [255, 0, 0], [0, 255, 255], [255, 255, 0], [255, 0, 255], [80, 70, 180], [250, 80, 190], [245, 145, 50], [70, 150, 250], [50, 190, 190]] #Testing on Image instance_segmentation_api('/content/Hasty_Founders.jpg', 0.75)
In Model playground, after creating a split for Instance segmentation/Object detection tweak the Hyper-parameters of Mask R-CNN:
NMS: In Object Detection, the objects in the image can be of different sizes and shapes, and to capture each of these perfectly, the algorithms that are used create multiple bounding boxes. (left image). Ideally, for each object in the image, we must have a single bounding box. To select the best bounding box, from the multiple predicted bounding boxes, these object detection algorithms use non-max suppression. This technique is used to “suppress” the less likely bounding boxes and keep only the best one. It takes into account the IoU Thresholds
