Horizontal Flip

If you have ever worked on a Computer Vision project, you might know that using augmentations to diversify the dataset is the best practice. On this page, we will:

• Сover the Horizontal Flip augmentation;
• Check out its parameters;
• See how Horizontal Flip affects an image;
• And check out how to work with Horizontal Flip using Python through the Albumentations library.

Let’s jump in.

Horizontal Flip explained

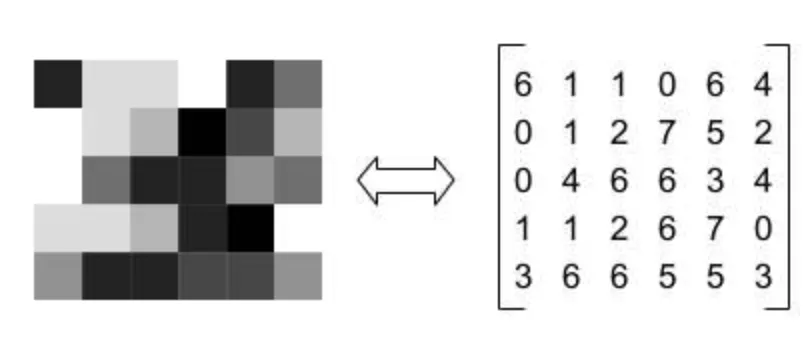

As you might know, every image can be viewed as a matrix of pixels, with each pixel containing some specific information, for example, color or brightness.

To define the term, Horizontal Flip is a data augmentation technique that takes both rows and columns of such a matrix and flips them horizontally. As a result, you will get an image flipped horizontally along the y-axis.

Parameters

• Probability of applying transform - defines the likelihood of applying Horizontal Flip to an image.

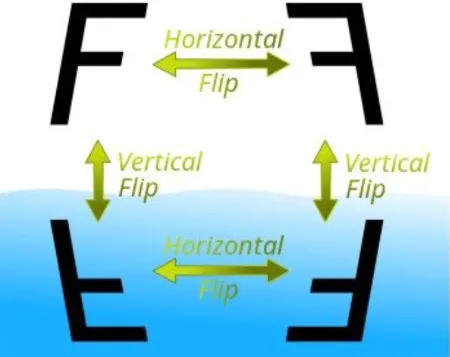

Horizontal Flip Vs. Vertical Flip

In the real world, people regularly confuse Horizontal and Vertical Flip as they feel alike. Still, there is a clear-cut difference:

• Horizontal Flip flips an image along the y-axis;
• Vertical Flip flips an image along the x-axis.

That is it. Keep this info in mind, and you will never find yourself stuck on a thought of which augmentation to choose.

Horizontal Flip visualized

Code Implementation

        import albumentations as albu
from PIL import Image
import numpy as np

transform =albu.HorizontalFlip(p=0.5)
image = np.array(Image.open('/some/random/image.png'))
augmented_image = transform(image=image)['image']

# we have our required flipped image in augmented_image.
